WE ARE COMMITTED TO BUILD HIGH EFFICIENCY, ENERGY SAVING, AND HIGH QUALITY MACHINERIES!
| Place of Origin: | China |
|---|---|
| Brand Name: | Worldsun |
| Certification: | CE, ISO, SGS, GMC |
| Model Number: | BRGF |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | wooden box |
| Delivery Time: | three months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | three months 3 sets |
| Production Capacity: | 5000-6000bph 500ml | Voltage: | 220V/380V, By Order |
|---|---|---|---|
| Condition: | New | After-sales Service Provide: | Engineers Available To Service Machinery Overseas, Online Support |
| Power: | 2.2KW | Weight: | 3000kg |
| Dimension: | 210x1720x2650mm | Certification: | ISO9001, CE, ISO, CE |
| Material: | Stainless Steel 304 / 316 | Warranty: | One Year |
| Machine Name: | Liquor Bottle Filling Machine | Range Of Capacity: | 2000-20000 Bottles/hour |
| Type: | Filling Machine | Application: | Beverage, Food, Chemical, Commodity |
| Power(w): | 600W | Product Name: | Radial Drilling Machine |
| Range Of Spindle Speed(r.p.m): | 40-570r/min | ||
| High Light: | 500ml Alcohol Automatic Filling Machine,6000bph Alcohol Automatic Filling Machine,Alcoholic Spirit Line Automatic Filling Machine |
||

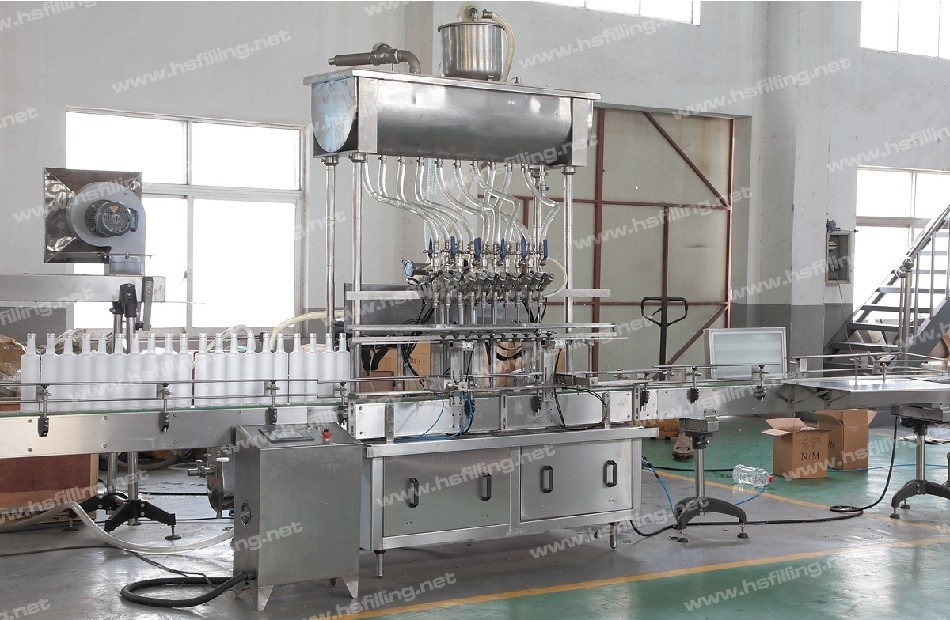

Automatic Packing Machine for Alcoholic spirit line
The BRGF series alcohol filling machine mainly used in glass bottle packing.
It is widely used in alcohol such as wine ,Vodka , Whisky, Agave,vinegar etc. The lid can be crown cap or aluminium screw-cap, plastic cap etc.,

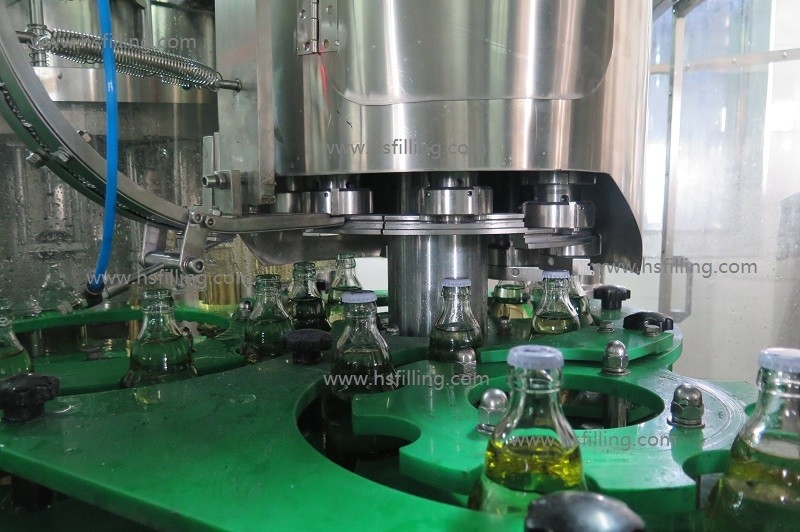

In the filling section, Bottle upgrade system can be constructed as mechanical mode or pneumatic mode, and the pre-holding parts ensure bottles run smoothly.
Alcoholic beverage refers to the beverage for people to drink with alcohol content above 0.5% (vol), including all kinds of fermented liquor, distilled liquor, prepared liquor and premixed liquor.
Beverage is a kind of liquid food which is produced by different formula and manufacturing technology with water as the basic raw material for people to drink directly. Generally, beverage can be divided into alcoholic beverage and non alcoholic beverage. Among them, alcoholic beverage refers to the beverage for people to drink, and the alcohol content is more than 0.5% Vol. China is a big country in the production and consumption of alcoholic beverage in the world. The production of alcoholic beverage in China has a long history, and its technology has been inherited for a long time. In the long history of development, rich varieties have been produced.
Filling machine is one of the main equipment of liquor production. It is based on advanced technology abroad, and is based on the characteristics of Baijiu (viscosity, alcohol, etc.) for automatic production of machinery. It can save a lot of manpower and material resources. Automatic filling of Baijiu is realized.
The liquor filling machine is made of stainless steel body, with compact structure, perfect control system, convenient operation and high automation. All parts contacted with the material are made of high quality stainless steel without process dead angle and easy to clean. The high speed filling valve is adopted, the liquid level is accurate and liquid loss, and the filling process requirements are ensured. The control system has the functions of production speed control, cap missing detection, bottle stuck self stop and output counting.
1. The machine adopts special filling valve and high-power vacuum pump, and the liquid level is consistent after packaging and filling.
2. When filling the bottle mouth, the liquid flows down the bottle wall. It effectively controls the foam caused by the liquid impact during filling and prevents liquid overflow.
3. The machine has the advantages of variable frequency speed regulation, fast filling speed, overload protection device, bottle clamping stop, soft start and elastic bottle supporting device, which can reduce the damage of bottles.
4. The filling volume is adjusted by adding and subtracting the gasket on the filling valve, which is convenient and fast.
5. The filling range of the machine is large, and the filling volume can be adjusted in 100-1500 ml.
6. Applicable to a wide range of bottle height, can be adjusted between 100-380mm.
7. The main sealing parts are made of imported silica gel, and the main parts are made of 304 stainless steel meeting the requirements of food hygiene.
8. The filling valve is easy to disassemble and clean.
Classification of liquor filling machine: according to the degree of automation, it is divided into automatic liquor filling machine and semi automatic filling machine.

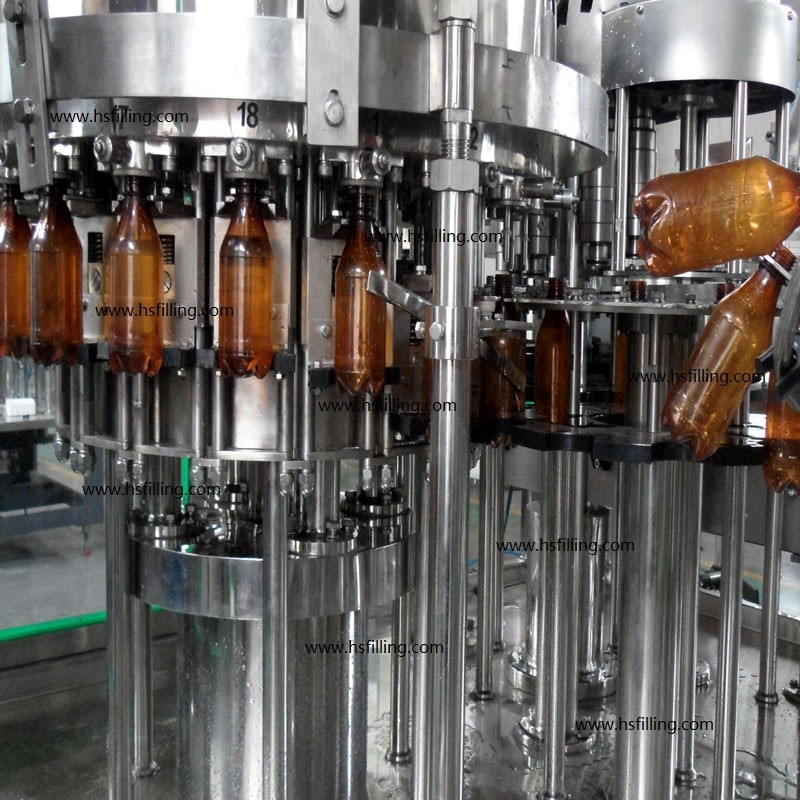

According to the type of filling machine, it can be divided into linear liquor filling machine and rotary liquor filling machine.
Technical Data:
| Model |
Number of filling and capping |
Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension (mm) |
| DCGF18/6 | 18,6 | 5000-6000 | 0.25L-2L D=50-108 mm H=170-340mm |
2.2 | 2100x1720x2650 |
1. Plant Included:
1) Bottle washing machine;
2) Bottle alcohol filling machine;
3) Bottle capping machine;
4) Labeling machine;
5) Packing machine;
6) Conveyor.
2. Production Capacity (500ml bottle):
1) from 5000 to 6000 bottles per hour
3. Please tell us below information then we can quote you:
1) Bottle volume;
2) How many bottles per hour you want?
4. We can provide you:
- Machine suggestion
- Special machine design according to your inquiry
- Stable quality machine
- Labeling
- carton case
- Machine testing in your factory
- Training
P.S-We provide glass bottle alcohol filling capping 2-in-1 machine and glass bottle rinisng alcohol filling capping 3-in-1 machine.
