Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE, ISO, SGS, GMC |
Model Number: | BRGF |
Minimum Order Quantity: | 1 Set |
Price: | 40000USD/set |
Packaging Details: | wooden box |
Delivery Time: | three months |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | three months 3 sets |
Production Capacity: | 10000-12000bph 500ml | Voltage: | 220V/380V, By Order |
---|---|---|---|
Condition: | New | After-sales Service Provide: | Engineers Available To Service Machinery Overseas, Online Support |
Power: | 4kw | Weight: | 3600kg |
Dimension: | 2800x2300x2650mm | CNC Or Not: | CNC |
Certification: | ISO9001, CE, ISO, CE | Warranty: | 1 Year |
Machine Name: | Alcohol Drink Bottle Filling And Capping Machine | Type: | Filling Machine |
Application: | Beverage, Food, Chemical, Commodity | Machine Material: | Stainless Steel 304 Or 316 |
Filling Alcohol Drink: | Liquor / Red Wine / Alcohol Drink / Beer | ||
Highlight: | 10000BPH Alcohol Filling Machine,GMC certified Alcohol Filling Machine,10000BPH wine filling machine |

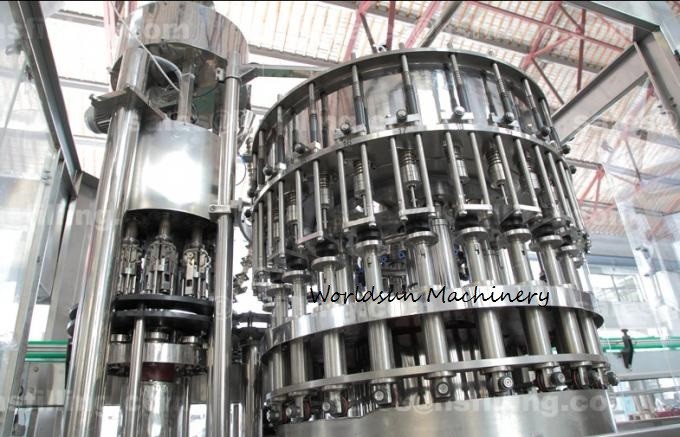

Alcoholic Beverage Bottle Filling Machine Capping Machine liquor bottling machine
Alcoholic beverage refers to the beverage for people to drink with alcohol content above 0.5% (vol), including all kinds of fermented liquor, distilled liquor, prepared liquor and premixed liquor.
In the world, Alcoholic beverage is usually divided into three categories according to its production technology
Distilled liquor (liquor): liquor made by distillation after fermentation of raw materials. This wine has a higher degree of content, and a very small amount of other solid substances, such as Baijiu, brandy, whisky, rum and so on.
Brewing wine (or press wine): raw materials are directly extracted after fermentation or the wine obtained by press method is called brewing wine. This kind of wine has lower degree, more solid content and less irritation. Such as yellow rice wine, beer, fruit wine, wine, etc.
Formulated wine: a wine made from Baijiu or alcohol and a certain proportion of sugar, spices, herbs, etc. This kind of wine contains sugar, pigment and different amount of solids. Different types of wine, the alcohol content is also different, such as liqueur, sherry, vermouth and so on.
The BRGF series alcohol filling machine mainly used in glass bottle packing.
It is widely used in alcohol such as wine ,Vodka , Whisky, Agave,vinegar etc. The lid can be crown cap or aluminium screw-cap, plastic cap etc.,
In the filling section, Bottle upgrade system can be constructed as mechanical mode or pneumatic mode, and the pre-holding parts ensure bottles run smoothly.
Technical Data:
Model |
Number of rinsing filling and capping |
Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension (mm) |
BRGF32/10 | 32,10 | 10000-12000 | 0.25L-2L D=50-108 mm H=170-340mm |
4 | 2800x2300x2650 |
1. Plant Included:
1) Bottle washing machine;
2) Bottle alcohol filling machine;
3) Bottle capping machine;
4) Labeling machine
5) Packing machine
6) Conveyor.
2. Production Capacity (500ml bottle):
1) from 10000 to 12000 bottles per hour
3. Please tell us below information then we can quote you:
1) Bottle volume;
2) How many bottles per hour you want?
4. We can provide you:
- Machine suggestion
- Special machine design according to your inquiry
- Stable quality machine
- Labeling
- carton case
- Machine testing in your factory
- Training
P.S-We provide glass bottle alcohol filling capping 2-in-1 machine and glass bottle rinisng alcohol filling capping 3-in-1 machine.
characteristic:
1. This machine has the characteristics of high precision quantitative and fast filling.
2. It has the characteristics of convenient, fast and accurate adjustment and measurement, large capacity range, wide adaptability, no leakage, no damage, automatic lifting, automatic guidance, etc.
3. wine bottles, yellow wine, wine, Baijiu, vinegar, soy sauce and other liquid products Bottled filling.
Suitable bottle height: 100-350mm
Diameter of bottle mouth: Φ 15 - Φ 42mm
External diameter of applicable bottle: Φ 30 - Φ 110mm
Matching power: 2.0kw
