Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE ISO |
Model Number: | LP |
Minimum Order Quantity: | 1 Set |
Price: | By order |
Packaging Details: | Wooden box |
Delivery Time: | 3 months |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1 set 1 month |
Material: | Stainless Steel 304, 316, According To Yours | Voltage: | 220V/380V, By Order |
---|---|---|---|
Automatic Grade: | Automatic | After Sales Service Provided: | Engineers Available To Service Machinery Overseas |
Packaging Type: | PET Bottles | Customized: | Machine Be Produced According To Your Bottles |
Condition: | New | Weight: | 2000kg |
High Light: | ISO Certified PET Bottle Unscrambler Machine,18000BPH PET Bottle Unscrambler Machine,18000BPH bottle unscrambling machine |
Lift type high speed bottle unscramble machine:

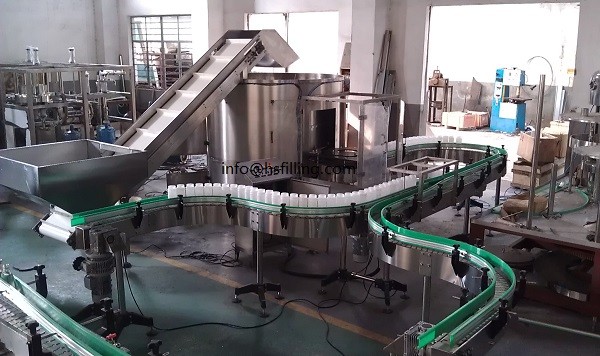

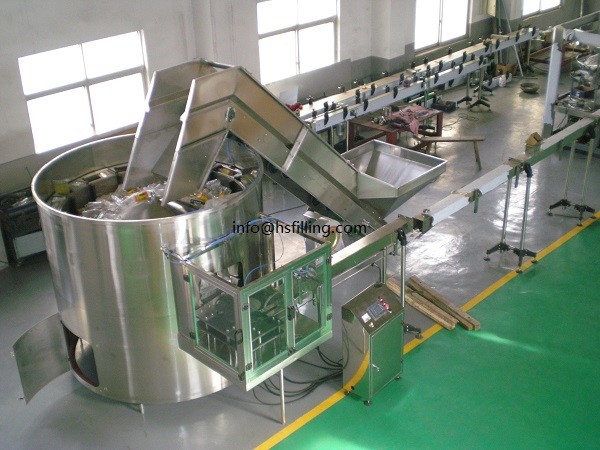

The automatic bottle unscrambler is consist of elevating type bottle feeder,unscrambler main body, bottle output system 3 sections.
1, the bottle feeder hopper and the side plate material is SUS304 stainless steel. With food grade baffle conveyor belt and driving motor. The feeder upload bottle to 2m height and drop bottles in the unscrambler. And the conveyor running speed is adjustable.
2, lift type bottle unscrambler is consist of outer tank, bottle lifting-droping system, umbrella tower, when the machine work, The lifting device moves up and down to push the bottle up and put bottle on dropping slot, and on bottle drop slot remain one bottle only, and a device will reject bottles stacking.the bottle which remained on the dropping slot will be located by bottle mouth.and then the bottle drop in the slot, then send the bottle out of bottle unscrambler.
The top part of the unscrambler is an umbrella bottom silo, which is equipped with sensors to detect the number of bottles in the silo. When the quantity of bottles in the silo is small, the bottle feeding machine automatically starts lifting and feeding into the bottle to replenish, and the bottle feeding machine automatically stops supplying the bottle when the silo is full.
3, The bottle-out system is a star wheel turntable, which rotates synchronously with the bottle-drop slot. The bottle in the bottle-drop slot is pulled out into the bottle-output turntable by the guide rail, and then the bottle is fed into the bottle conveyor
Model | LP-12 | LP-14 | LP-16 | LP-18 | LP20 |
Production capacity(bph) | 5000-6000 | 8000-9000 | 12000-14000 | 16000-18000 | 20000-22000 |
pressure air source(Mpa) | 0.5Mpa | ||||
air consumption (m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 |
Power(kw) | 1.5 | 2.2 | 2.2 | 6 | 6 |
Bottle size(mm) | D:20-50mm,50-90mm; H120-180mm,180-280mm | ||||
Dimensions(mm) | 1660*1730*2200 | 1800*2200*2200 | 2000*2600*2200 | 2200*2800*2200 | 2400*3100*2200 |
Machine weight(kg) | 2000 | 2300 | 2600 | 2900 | 3100 |
Automatic plastic bottle unscrambler machine, automatic bottle sorter machine, high speed bottle feeding machine
Worldsun Packing Machinery Co.,ltd is a professional manufacturer of bottling plant machinery, including bottle unscramble machine, bottle air convyor, bottle rinsing-filling-capping machine, chain conveyor , pasteurizing tunnel machine, labeling and packing machinery etc. and we accept customized bottling line equipment design and manufacturering.
G- wide range of use, a multi - use machine and strong adaptability, round bottle, square bottle can be arranged, replacement of the product only need to replace the mold parts
Structural features:
A-Optimized machine structure and easy bottle loading. Bottles are conveyed into unsrambler automatically where thet are lined up and discharged by air conveyor.
B-PLC program control, digital speed display, frequency inverted speed variation. High automation and easy operation.
C-Reliable and safe operation. Easy to connect with fillers.The operating system is controlled by the touch screen, and the operation is simple, practical and efficient.
D- The fuselage is made of stainless steel to ensure that the bottle is clean and pollution-free.
E- Imported electrical equipment, stable performance, very low failure rate
F- Bottle stop, alarm and other functions when equipment is abnormal
Main components:
Main motor, pneumatic control elements, PLC and frequency inverter from Mitsubishi and Omorn respectively.
