Small Scale ISO Certified 8000BPH Beer Filling Machine beer bottle filling capping machine

Small scale ISO certified 8000 bottles/hour beer filling machine

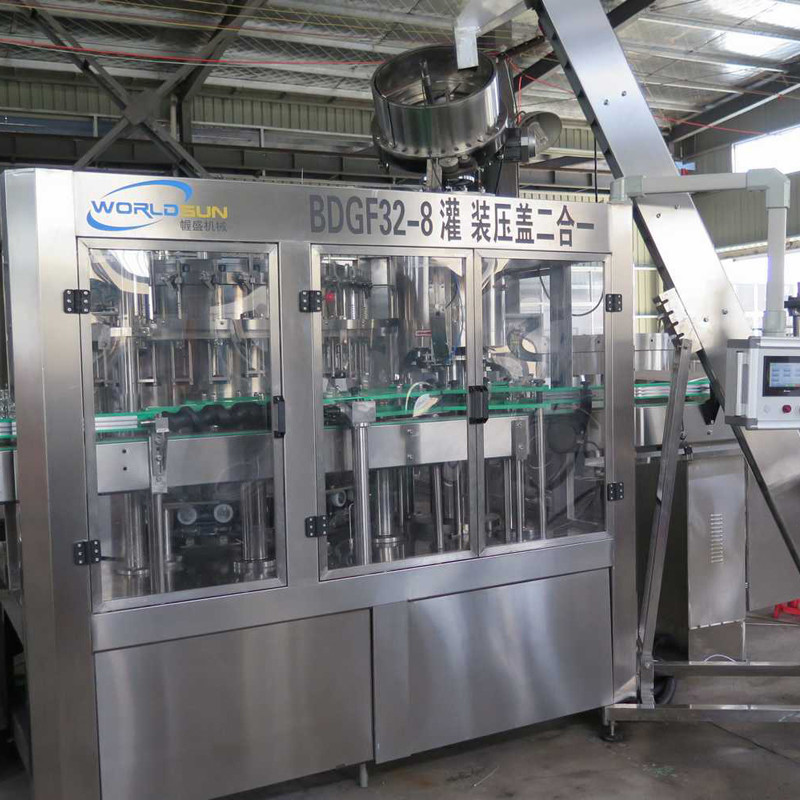

The automatic three in one beer filling machine glass bottle crown cap washing, filling and sealing unit is a new product developed on the basis of introducing, digesting and absorbing similar products at home and abroad and summarizing many years of production experience. The unit is a combination of washing, filling and sealing and driven by a drive motor (referred to as three in one equal pressure filling machine). It has the advantages of high degree of automation, compact structure, beautiful appearance, convenient operation and maintenance, safe and reliable, and continuous adjustable production capacity. It is an ideal production equipment for aerated drinks in China. It has a wide range of applications. According to the different bottle quality, shape and capacity of users, the design can be changed to meet the needs of production.

Features of glass bottle crown cover of automatic three in one beer filling machine:

The whole machine adopts the structure of suspended bottle clamping mouth conveyor, which makes the whole line conveying bottles more reliable. Different types of bottles only need to adjust the height of the conveyor belt and a small number of accessories to change the bottle type more quickly and labor-saving.

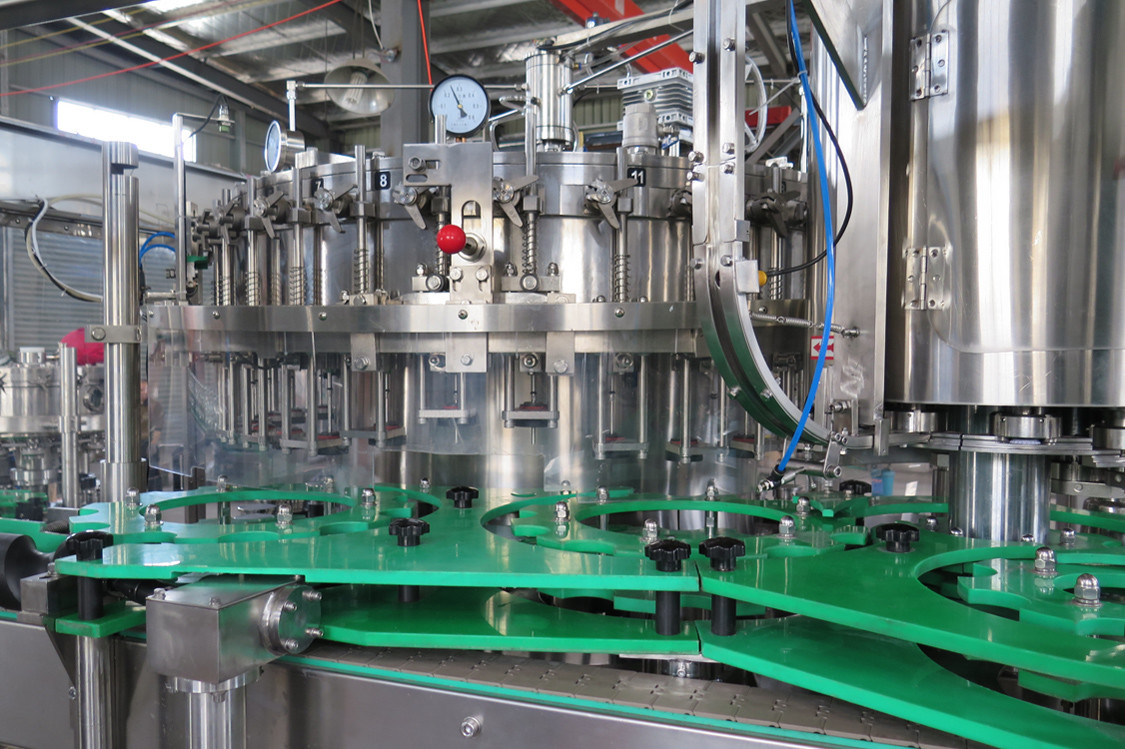

The filling machine adopts the principle of equal pressure filling, low temperature filling, high filling precision and adjustable liquid level; The glass bottle has a centering device.

The spring type flushing forceps, empty bottles with the track automatically 180 ° Turn over, wash, drain and turn the bottle back to the right automatically. The machine adopts plum shaped porous nozzle to wash the bottom of the bottle fully with high efficiency.

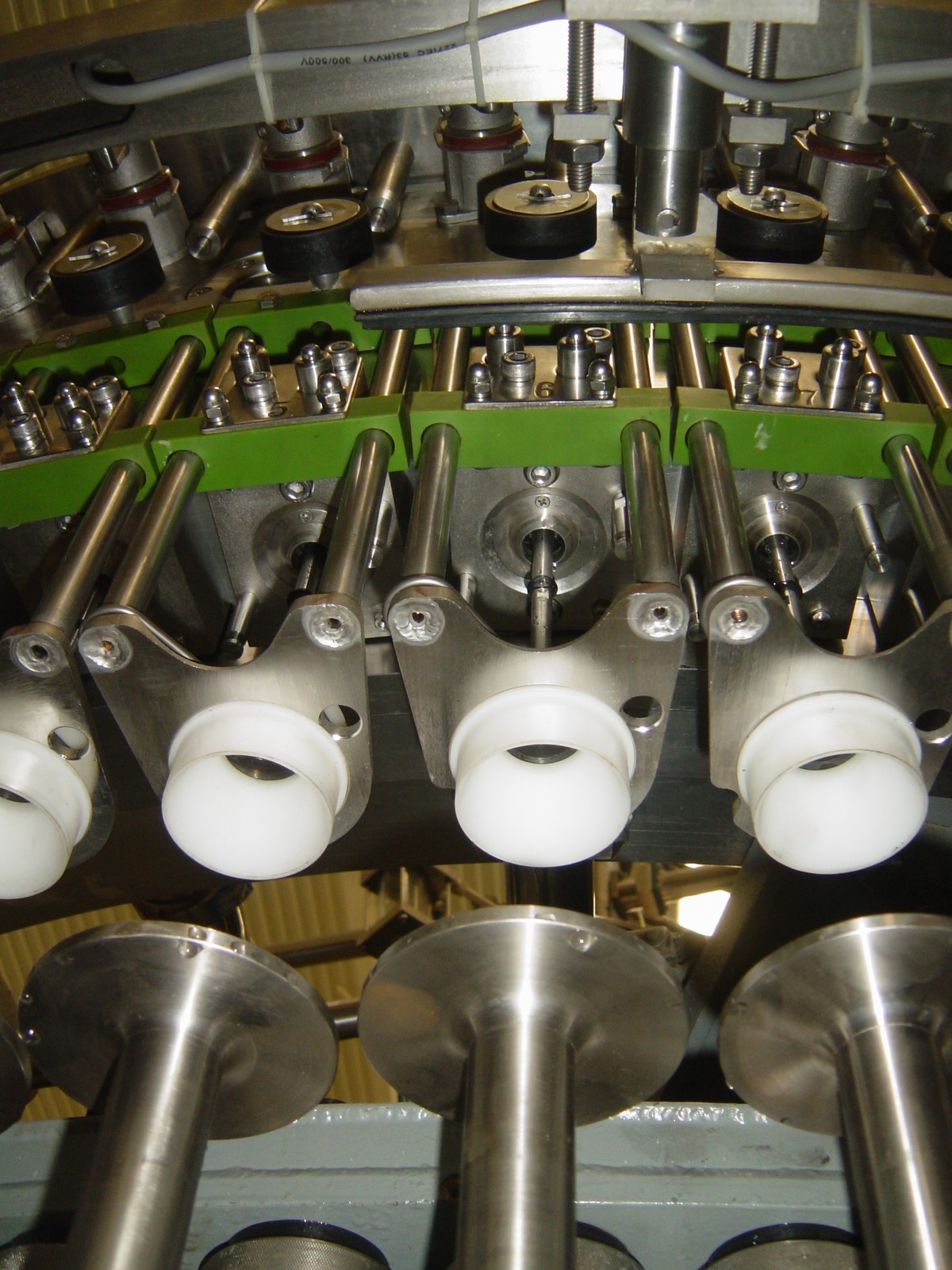

The gland part adopts vibration motor cover adjuster. The gland is compact, the equipment structure is compact, the floor area is small, the process is flexible, and it is easy to operate and maintain. The capping head is made of ceramic capping film, which has high efficiency and does not damage the bottle cap.

Machine Description:

Compared with other liquid filling technology, beer filling process is the most complex, according to its product characteristics, the requirements for filling machinery is extremely high; usually beer filling process mainly has 10 steps:

1 Bottles infeed : Cleaned glass bottles comes into the filling machine through a conveyor belt and bottle screw sepater

2 Vacuum:Pre-vacuum the glass bottle for the purpose of replacing the oxygen in the bottle with CO2

3 Inflating: injecting carbon dioxide gas into the bottle

4 Vacuum again:Vacuum the remaining oxygen in the bottle again

5 pressure balance: Fill the bottle with carbon dioxide gas again and balance the pressure inside the bottle with the pressure inside the tank

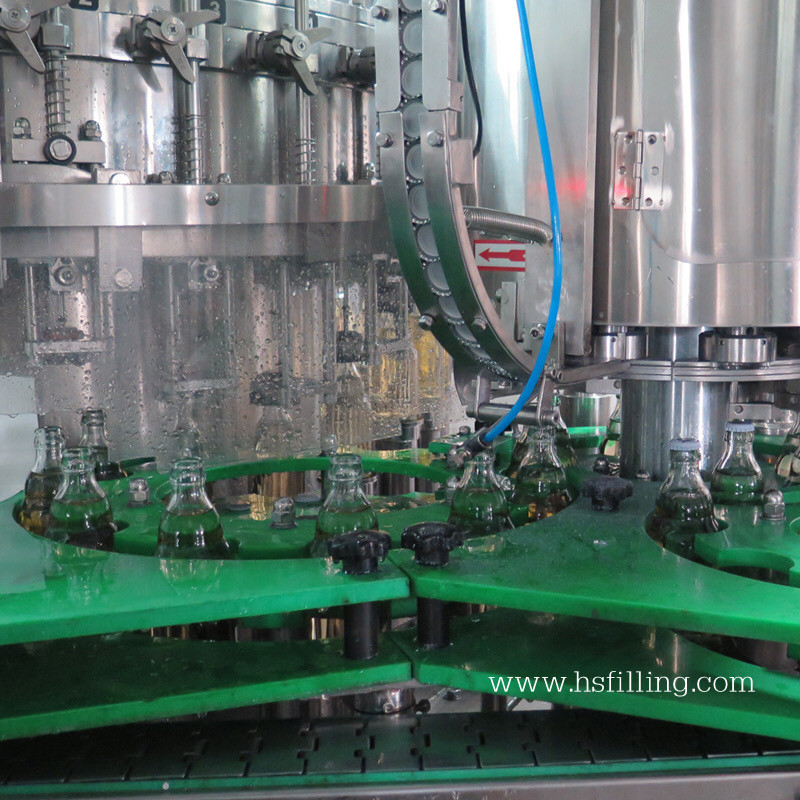

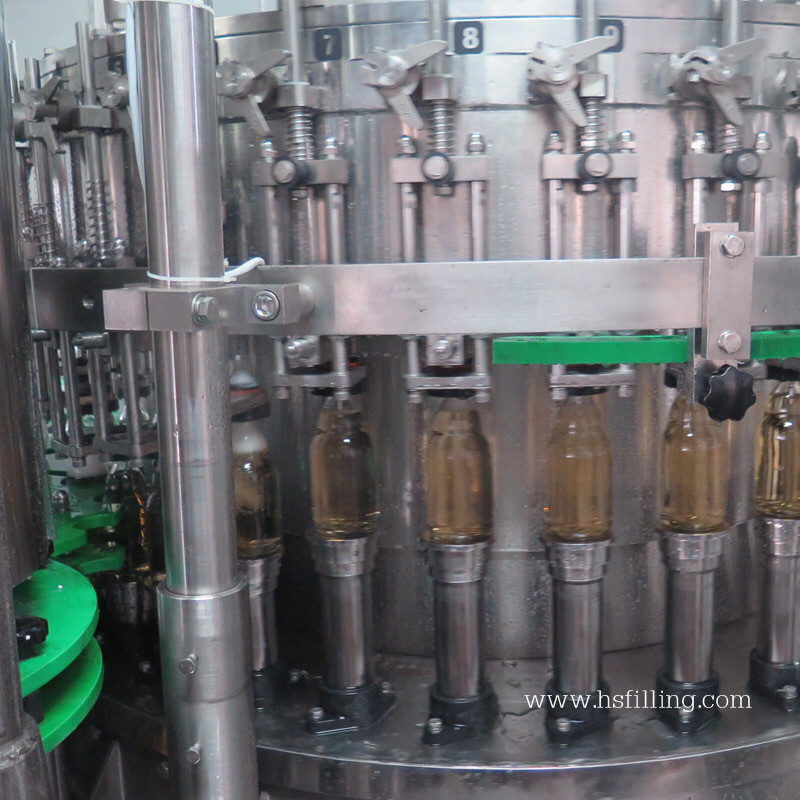

6 Filling: because of the pressure in the bottle is balanced with the pressure of the filling tank, forming equal pressure, the filling valve was opened under the action of spring automatically , at this time the beer flows into the bottle under the action of gravity, and the gas in the bottle enters the tank through the gas return tube of the filling valve

7, Closing valve: when the liquid level reaches the position of the exhaust hole of the gas return tube, because the liquid has closed the gas return tube, it can not continue to discharge the gas, and the liquid can not continue filling, the bottle has been filled, the filling is finished, and close the filling valve.

8, Exhaust pressure : the bottle at the end of filling before leaving the filling valve, the filling valve exhaust will slowly release the pressure inside the bottle.

9, Bubble: After the filled bottle is removed out from the filling valve, a high pressure water drops inject in bottle to creat foam (usually hot water is used), a certain amount of foam is produced in the bottle, and the oxygen in the bottle mouth space is discharged

10,Capping: the last step is Capping, after capping and sealing, the bottle filling process is finished, the bottles come to pasteurizing process.

Main technical parameters

Crown cap Capping machine is mainly used for automatic capping of glass bottle crown cover, chrysanthemum cover and beer cover (such as beer, soda, liquor, juice beverage, health drink, sauce, vinegar, wine making industry, etc.). The equipment is easy to operate, easy to maintain, high automation intensity, reduce labor, reduce costs, production standards, is the ideal choice for the food industry.

Production capacity: 1800-2200 bottles / hour

Number of gland heads: 6

Applicable bottle capacity: 200-750ml (mould made according to bottle shape)

Applicable power supply: 380V / 220V / 50Hz/

Power: 1.5kw

Air supply pressure: 0.4-0.8mpa

Dimensions: 980 × seven hundred × 1900mm

Weight 320kg
