Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | ISO,CE,SGS |
Model Number: | GFP |
Minimum Order Quantity: | 1 Set |
Price: | By order |
Packaging Details: | Wooden box |
Delivery Time: | 1-3 months |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1 set 1-3 months |
Type: | Filling Machine | Voltage: | 220V/380V, By Order |
---|---|---|---|
Automatic Grade: | By Order | Packaging Type: | Bottles |
After-sales Service Provided: | Engineers Availabel To Service Machinery Overseas, Online Support | Condition: | New |
Cnc Or Not: | CNC | Power: | 3kw |
Weight: | 3000kg | Dimension(l*w*h): | 1060*750*1700mm |
Certification: | ISO9001, CE, ISO, CE | Filling Speed: | Customized |
Warranty: | One Year | Machine Name: | Salad Dressing Filling Machine |
Product Name: | Salad Dressing, Jam, Ketchup, Sauce Etc. Filling Machine | ||
High Light: | 1000BPH Salad dressing filling machine,380V Salad Dressing Filling Machine,1000BPH rinsing filling capping machine |

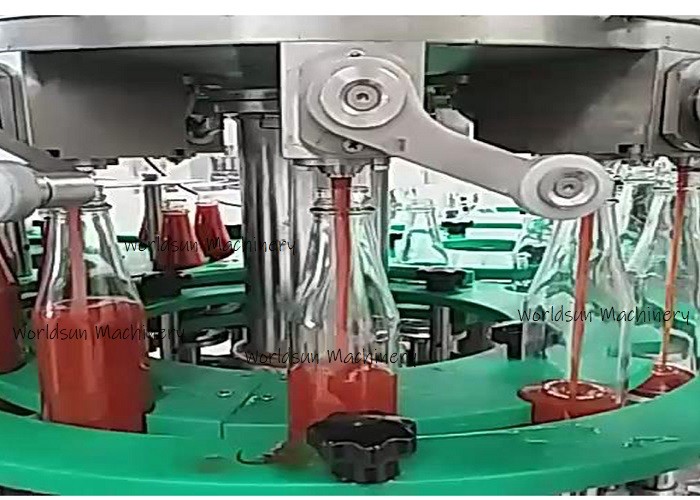

Salad dressing filling machine for bottle ringsing filling sealing semi-automatic
It is suitable for filling thick sauces with granules and high concentration in condiments, such as salad dressing, chili sauce, bean paste, peanut butter, sesame paste, jam, butter hot pot base, red oil hot pot base, etc. It is suitable for filling all kinds of sticky bodies and sauces containing all kinds of solid substances, such as pepper, peanut, meat, seasoning, and separating oil and seasoning into various containers. It is suitable for butter hot pot bottom, red oil hot pot bottom, chili sauce, honey juice, jam, etc.
The filling machine for thick thick sauce should be equipped with automatic mixing function for filling thick and granular sauce like materials. The structure is simple, the accuracy is high, and the operation is more simple. The filling valve is controlled by pneumatic valve, so the filling accuracy is higher. The filling volume and filling speed can be adjusted at will. The filling plug adopts anti drawing and lifting filling device.
Packaging materials: salad dressing, hot pot bottom material, viscous sauce, such as butter hot pot bottom material, chili sauce, honey, juice, etc.
Measurement method: piston pump volume measurement
Measurement range: 100-500g
Filling speed: 10 ~ 30 times / min
Filling accuracy: ± 1%
Total power: 0.75kw
Power supply voltage: 220 V / 50 Hz
According to the operation process can be divided into automatic filling machine and semi-automatic filling machine.
1. Semi automatic jam filling machine
1. The body is mainly made of high-quality stainless steel and aluminum alloy, with beautiful appearance, clean and sanitary, which fully meets the requirements of food hygiene;
Automatic jam filling production line
Automatic jam filling production line
2. It has the function of manual and automatic continuous filling, and the manual and automatic state can be quickly switched; it can be used with supporting conveyor line
3. It can be equipped with mixing, heat preservation and capping system to realize integrated operation
4. Quick and flexible connection makes disassembly and cleaning more convenient;
2. Automatic jam filling machine
The full-automatic jam filling machine can be equipped with bottle arranging and loading system, bottle washing system, drying and sterilization system, filling system, capping system, labeling and coding system.
Quick Detail:
1. Product: salad dressing filling machine
2. Capacity: 1000-3000bph
3. Suitable bottle: 200ml-2500ml
4. Authentication: ISO,CE,SGS
Description:
QS Series Auto-Spraying Type Bottle Washer
The equipment is mainly suitable for washing plastic bottle, glass bottle. It is washing way is rotary spraying construction. The machine can continuously automatic finish taking in and out rotating, washing, droping and so on.
GFP Series Negative Pressure Filler
The filling machine can fill liquid food which does not contain gas, such as all kinds viscousity materials, such as salad dressing, fruit jam filling (orange fruit jam, strawberry fruit jam, mango fruit jam), chocolate paste,peanut butter, honey, butter, Mayonnaise, ketchup etc. And all kinds of jam with small fruit pieces in it (size less than 3mm*3mm) filling in bottles. As the filler works in sealed condition and no pollution comes out. It is up to Foodstuff sanitation law. And it can accurately control liquid level, filling precision is high.
FXZ Series Screw Type Sealer
The sealer is for automatically sealing various sizes of bottle with plastic cap. It is perfect in performance, reliable in operation and easy in maintenance. So it is widely used in automatic packing lines for various kinds of wine, food, drink. Medicine and so on. It is one of the most ideal screw type automatic sealing equipment.
Applications:
This machine is specially made for all kinds of viscousity materials, such as salad dressing, fruit jam filling, chocolate paste,peanut butter, honey, butter, Mayonnaise, ketchup etc. And all kinds of jam with small fruit pieces in it (size less than 3mm*3mm) filling in bottles .This machine is our special design and enjoy good reputation in world market . All the contacted part with the filling material is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.
Specifications:
No. | Items | Performance |
01 | Machine dimension (L×W×H) | 2000mm×750mm×1500mm |
02 | No. of filling head | 4/6/8/10/12/16 |
03 | Suitable bottle size (abnormal bottles can also be valid) | |
Diameter | Φ30mm~Φ100mm | |
Height | 50mm~250mm | |
04 | Diameter of bottle mouth | ≥φ18mm |
05 | Suitable filling range | 200ml,400ml |
06 | Production capacity | 400-3000 bottles/hour |
07 | Error range | ±1% |
08 | Power supply | AC 220V; 50Hz |
09 | Power |
1.5-4 Kw (power is twice than normal filler) |
10 | Pneumatic(air-operated)source | 0.6 Mpa clean and stable compressed air |
Competitive Advantage:
1. Adopts Piston pump & rotary valve with high filling accuracy
2. Filling nozzles is with drip-proof
3. Conveyor with photo sensor
4. PLC and Human-computer touch screen etc; no bottle, no filling
