| Place of Origin: | China |
|---|---|
| Brand Name: | Worldsun |
| Certification: | ISO,CE,SGS |
| Model Number: | GFP |
| Minimum Order Quantity: | 1 Set |
| Price: | By order |
| Packaging Details: | Wooden box |
| Delivery Time: | 1-3 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 set 1-3 months |
| Type: | Bottle Rinsing Machine/filling Machine/capping Machine | Voltage: | 220V/380V, By Order |
|---|---|---|---|
| Automatic Grade: | Automatic | Packaging Type: | Bottles |
| After-sales Service Provided: | Engineers Availabel To Service Machinery Overseas, Online Support | Condition: | New |
| Power: | 3kw | Weight: | 400kg |
| Dimension: | 1700*1900*2000mm | Certification: | ISO9001, CE, ISO, CE |
| Production Capacity: | 2000bph 500ml | Warranty: | One Year |
| Application: | Beverage, Food | Machine Type: | Bottle Filling Machine |
| Material: | Stainless Steel 304 / 316 | ||
| High Light: | 2000bph Mayonnaise Filling Machine,SS304 Bottle Filling Machine,380V Beverage Bottle Filling Machine |
||

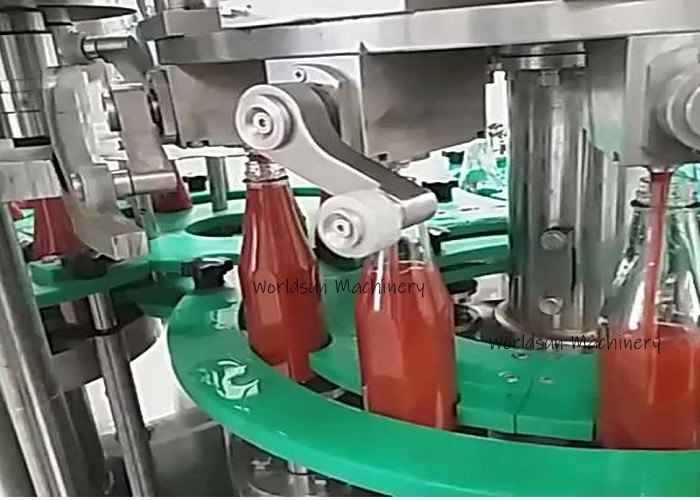

Automatic Mayonnaise mayo Filling Machine capping machine
Quick Detail:
1. Product: Mayonnaise filling machine
2. Capacity: 1000-3000bph
3. Suitable bottle: 200ml-2500ml
4. Authentication: ISO,CE,SGS
Description:
QS Series Auto-Spraying Type Bottle Washer
The equipment is mainly suitable for washing plastic bottle, glass bottle. It is washing way is rotary spraying construction. The machine can continuously automatic finish taking in and out rotating, washing, droping and so on.
GFP Series Negative Pressure Filler
The filling machine can fill liquid food which does not contain gas, such as all kinds viscousity materials, such as Mayonnaise, fruit jam (orange fruit jam, strawberry fruit jam, mango fruit jam), chocolate paste,peanut butter, honey, butter, Mayonnaise, ketchup etc. And all kinds of jam with small fruit pieces in it (size less than 3mm*3mm) filling in bottles. As the filler works in sealed condition and no pollution comes out. It is up to Foodstuff sanitation law. And it can accurately control liquid level, filling precision is high.

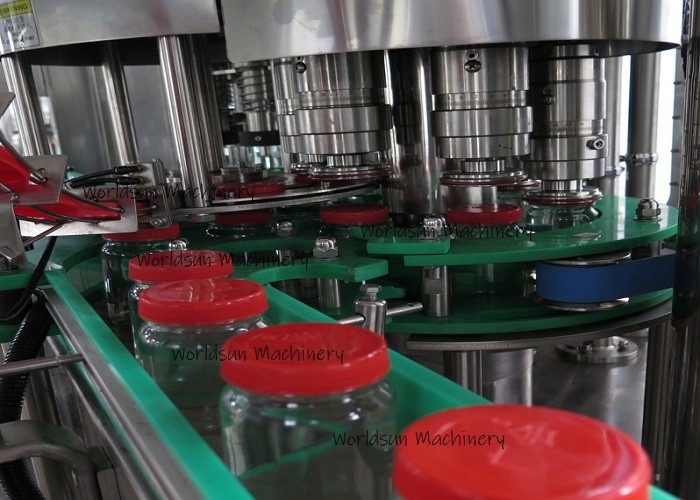

FXZ Series Screw Type Sealer
The sealer is for automatically sealing various sizes of bottle with plastic cap. It is perfect in performance, reliable in operation and easy in maintenance. So it is widely used in automatic packing lines for various kinds of wine, food, drink. Medicine and so on. It is one of the most ideal screw type automatic sealing equipment.
Applications:
This machine is specially made for all kinds of viscousity materials, such as Mayonnaise, fruit jam filling, chocolate paste,peanut butter, honey, butter, Mayonnaise, ketchup etc. And all kinds of jam with small fruit pieces in it (size less than 3mm*3mm) filling in bottles .This machine is our special design and enjoy good reputation in world market . All the contacted part with the filling material is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.
Specifications:
| No. | Items | Performance |
| 01 | Machine dimension (L×W×H) | 2000mm×750mm×1500mm |
| 02 | No. of filling head | 4/6/8/10/12/16 |
| 03 | Suitable bottle size (abnormal bottles can also be valid) | |
| Diameter | Φ30mm~Φ100mm | |
| Height | 50mm~250mm | |
| 04 | Diameter of bottle mouth | ≥φ18mm |
| 05 | Suitable filling range | 200ml,400ml |
| 06 | Production capacity | 400-3000 bottles/hour |
| 07 | Error range | ±1% |
| 08 | Power supply | AC 220V; 50Hz |
| 09 | Power |
1.5-4 Kw (power is twice than normal filler) |
| 10 | Pneumatic(air-operated)source | 0.6 Mpa clean and stable compressed air |
Competitive Advantage:
1. Adopts Piston pump & rotary valve with high filling accuracy
2. Filling nozzles is with drip-proof
3. Conveyor with photo sensor
4. PLC and Human-computer touch screen etc; no bottle, no filling
