Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | ISO, SGS, CE, GMC |
Model Number: | CGGF |
Minimum Order Quantity: | 1 Set |
Price: | USD 50000 per Set |
Packaging Details: | shrink film and wooden box |
Delivery Time: | 70 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 50 Sets per Year |
Production Capacity: | 18000 Bottles/hour | Material: | Stainless Steel 304, 316 |
---|---|---|---|
To Fill: | Juice With Fruit Meat | Voltage: | 220V/380V, Can Be Designed |
Automatic Grade: | Automatic, Semi-Automatic | Condition: | New |
Weight: | 3600KG | Driven Type: | Electric |
Dimension: | 3000x1700x2200mm | Power: | 10kw |
High Light: | 18000 bottles/hour Juice Filling Machine,380V Juice Filling Machine,18000 bottles/hour juice filling equipment |

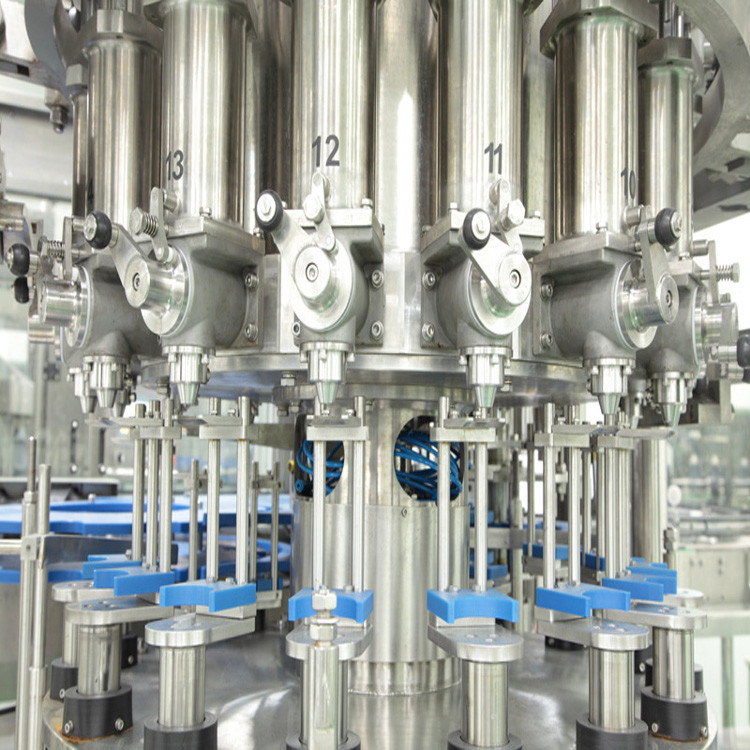

18000BPH Stainless Steel Automatic fruit pulpy juice filling capping machine granular juice filling machine
Specification:
Model |
CGGF 40-24-40-12 |
|
Production Capacity(0.5L) |
18000 bottles/hour | |
Bottle | PET round or square | |
Bottle Diameter | Φ30-Φ90mm | |
Bottle height | 150-320mm | |
Compressed air | 0.3-0.7 Mpa | |
Rinsing pressure | 0.25Mpa | |
Total power | 10kw |
Hot filling is the filling temperature above 85 ℃, which has low requirements for the filling machine and filling room, but the beverage bottle needs high temperature resistance and high cost. For products containing heat sensitive substances and affected by high temperature nutrition and taste, cold filling or medium temperature filling must be used instead of hot filling. However, filling machines are very expensive. At present, most of them are hot filling in China
Beverage hot filling is generally used in the production line of concentrated and reduced fruit juice. This kind of fruit juice uses concentrated fruit juice or fruit powder as raw materials, then mixed with syrup and beverage additives, maintained for about 30 minutes after pasteurization (85-100 ℃), and finally filled. This kind of fruit juice beverage has a long shelf life, usually about one year.
According to the filling principle, the complete set of fruit juice beverage filling equipment can be divided into atmospheric filling machine, pressure filling machine and vacuum filling machine.
Atmospheric pressure filling machine is filling by liquid self weight under atmospheric pressure. This kind of filling machine is divided into regular filling and constant volume filling. It is only suitable for filling low viscosity liquid without gas, such as milk, wine, etc.
The pressure filling machine is used to fill at a pressure higher than the atmospheric pressure, which can also be divided into two types: one is that the pressure in the liquid storage cylinder is equal to the pressure in the bottle, and the filling is carried out by the liquid flowing into the bottle by its own weight, which is called isobaric filling; The other is that the pressure in the liquid storage cylinder is higher than that in the bottle, and the liquid flows into the bottle by pressure difference. This method is often used in high-speed production lines. Pressure filling machine is suitable for filling liquid containing gas, such as beer, soda, champagne, etc.
The vacuum filling machine is used for filling when the pressure in the bottle is lower than the atmospheric pressure. This filling machine has simple structure, high efficiency and wide application range for the viscosity of materials, such as oil, syrup, fruit wine, etc.
Quick Detail:
1, bottle size:200ml-1500ml
2, capacity:18000BPH
3, certification:ISO CE
Description:
1. Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.
2. fruit Juice filling machine is a fully automatic and multi-functions combined machine, which integrats bottle rinser, filler and screw capper in one unit. It is suitable for filling non carbonated beverage, such as fruit juice(with or without fruit pieces), dairy drink, mineral water, pure water and tea.
3. The filing valves and all other material touched parts is made of 316L stainless steel.
4. automatic filling temperature control system for hot filling purpose.
5. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height. Only arch board and star wheel such little nylon parts need to be changed.
6. The machine filling system is widely used in liquid filling process, hot filling or vacuum filling purpose.
Application:
This machine is used for all kinds of fruit juice filling,
( apple juice filling machine,orange juice filling machine,Aloe juice filling machine,Coconut juice filling machine,fresh juice filling machine,
Passion fruit juice filling machine,Passion fruit seeds juice filling machine,glass bottle juice filling machine,pineapple juice filling machine,
kiwi fruit juice filling machine,grape juice filling machine,pure juice filling machine,fruit juice filling and capping machine,fruit juice filler-capper
Competitive Advantage:
1. High-speed large flow valve filling valve, filling fast, filling accurate and no liquid lose.
2. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
3. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Siemens,Schneider, OMRON.
