WE ARE COMMITTED TO BUILD HIGH EFFICIENCY, ENERGY SAVING, AND HIGH QUALITY MACHINERIES!
| Place of Origin: | China |
|---|---|
| Brand Name: | Worldsun |
| Certification: | CE ISO SGS |
| Model Number: | CGF |
| Minimum Order Quantity: | 1 Set |
| Price: | 10000-100000usd/set |
| Packaging Details: | Wooden box |
| Delivery Time: | 3 Months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 Set 1 month |
| Type: | Beverage Filling Machine | Material: | Stainless Steel 316/316L |
|---|---|---|---|
| Filling Beverage: | Mineral Water, Pure Water | Packaging Type: | Bottles |
| Production Capacity: | 2000-24000bph 500ml | ||
| High Light: | 24000bph Mineral Water Bottle Filling Machine,316L Mineral Water Bottle Filling Machine,24000bph drink filling machine |
||
1. CGF Series
2. filling speed : 2000-24000bph @500ml
3. Suitable bottle size :250ml-1500ml
Description

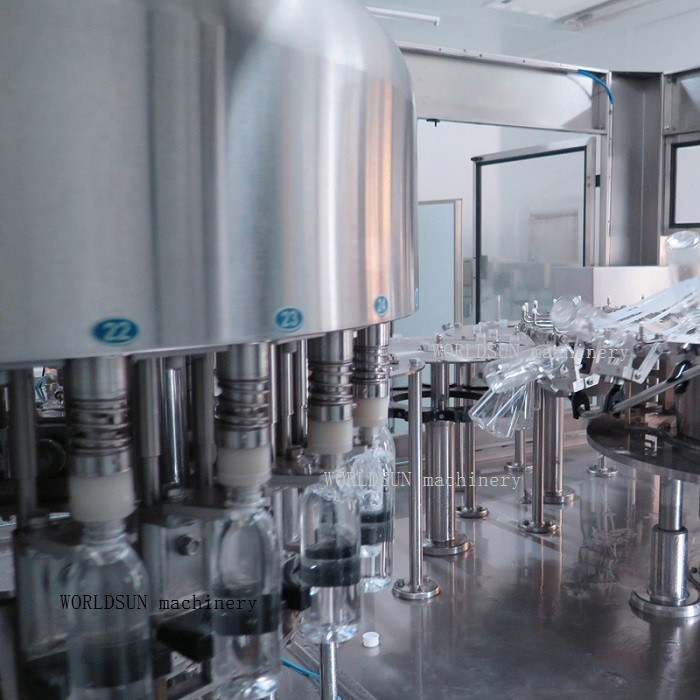

Automatic Mineral Water Beverage Filling Machine CGF Series
The machine is based on the introduction of foreign technology,combined with our years of manufacturing experience .the machine
combines Washing,filling and capping ,with scientific and rationaldesign,beautiful shape.it is easy in maintenance ,with automation.this
machine is mainly used for water filling .
1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.
2. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
3. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
4. No Bottle No Filling, no caps no capping, no caps auto stops
5. When bottle jam auto stop, machine accident auto stop
6. Open the window when machine running, machine auto paused
7. Heavy duty stainless steel filling pump & rinsing pump
8. Food grade 316L or 304stainless steel contact parts, smooth & fine polish,no dead angles
9. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts.
10. Machine and cable arrangement designed according to CE standard and all safety standard
Applications:
The series equipment is used in production liquor, wine, soy vinegar etc.
Pet bottle and glass bottle
Screw capping and press capping cap
Specifications:
| Model | Number of washing filling and capping | Production capacity Bottle per hour(0.5L) |
Applicable bottle specifications (mm) | Power(kw) | Dimension(mm) |
| CGF14/12/5 | 14, 12, 5 | 2000-4000 | 0.25L-2L =50-108 mm H=170-340mm |
3.58 | 2100x1400x2500 |
| CGF18/18/6 | 18, 18, 6 | 5000-7000 | 4.68 | 2460x1720x2650 | |
| CGF24/24/8 | 24, 24, 8 | 8000-12000 | 6.58 | 3100x2100x2650 | |
| CGF32/32/8 | 32, 32, 8 | 12000-15000 | 9.68 | 3500x2500x2650 | |
| CGF40/40/10 | 40, 40, 10 | 15000-18000 | 9.68 | 4600x1800x2650 | |
| CGF50/50/12 | 50, 50, 12 | 20000-24000 | 10.8 | 5200x4500x3400 | |
| CGF60/60/15 | 60, 60, 15 | 25000-28000 | 11.28 |
6500x4500x3400 |
Competitive Advantage:
1. The BRGF series 3-in-1 Glass Bottle Beverage Filling Machine, capacity is in 3000-12000 bottles per hour.
2. It is widely used in Wine, Liquor , Alcohol drinks, Vodka , Whiskey, Agave, Vinegar etc.
3. Apply to kinds of 0.18L-2LRound / Square / Flat Glass Bottle.
3. The lid can be crown cap or aluminum screw-cap, plastic cap, twist-off cap, etc.
