Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE ISO SGS |
Model Number: | XF |
Minimum Order Quantity: | 1 Set |
Price: | By order |
Packaging Details: | Wooden box |
Delivery Time: | 1 month |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5 Sets per month |
Voltage: | By Order | Application: | Beverage, Food |
---|---|---|---|
Material: | Stainless Steel | Automatic Grade: | Automatic |
Type: | Capping Machine | Product Name: | Automatic Capping Machine |
Capping Speed: | By Order | ||
High Light: | 3200BPH Automatic Capping Machine,1500ml Automatic Capping Machine,3200BPH automatic bottle capper |

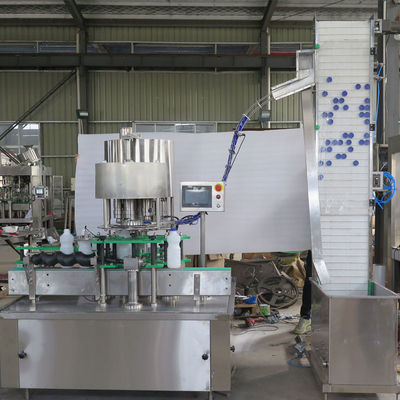

Principle and features:
Glass bottle automatic capping machine is developed by our company with many years of production experience by introducing foreign advanced high-speed capping principle and technology. It integrates automatic bottle feeding, automatic capping, automatic capping, automatic capping and automatic bottle discharging. This series of models have high degree of automation, fast production speed and stable and reliable performance. It is an ideal capping equipment for tinplate III (IV) capping in beverage, food, health care products and other industries.
Structural features and material use:
① The machine has reasonable mechanism design, compact structure, simple and convenient operation and maintenance;
② The machine frame, components and shell are made of high-quality stainless steel and aluminum magnesium alloy, with beautiful appearance, easy cleaning and meeting the requirements of food hygiene;
③ The rubbing type screw cap is adopted, which effectively solves the disadvantages of sliding and damage of the traditional screw cap machine;
④ The power supply of main mechanisms adopts electronic speed regulating motor, and the working speed is infinitely adjustable, which can adapt to different production rhythms. Users can freely adjust the production speed within the scope of equipment design;
⑤ The spacing and height of the capping mechanism can be quickly adjusted to adapt to different bottles and caps of different specifications;
⑥ The cover sending mechanism is equipped with photoelectric induction safety protection device, which can control the bottle handling mechanism to realize the self-protection function of "starting up and sending the cover without cover, closing the cover without sending the cover" and enhance the operation stability and reliability of the equipment
Quick Detail:
automatic capping machine with cap soting system
1. Full Automatic lug cap screw capping machine
2. easy change over for different bottle size
3. pick and place technology
4. over-load protection system
Description:
This automatic high speed bottle capping machine is developed on the basis of advinced technology. The structure is compact and the production is stable. The machine has the function of overload-protection and the bottle and machine will not be broken even if the wrong operation. The capping speed can be adjusted to control the production capacity.
The cap unscrambling system adopts crawler-type elevating method, it arrange caps according to the cap center of gravity, no fault cap output and no cap damage,A slideway connect the cap unscrambler and the capping machine, and it equipped with 1 sensors on the slideway, if there is no caps feed to capping machine, the sensor will send information to PLC, the machine will stop and alarming.
Applications:
This automatic bottle capping machine bottle tightener is used for plastic cap screw capping process.
it Suitable for PET bottles and glass bottles.
Specifications:
Model | ZGF-6 |
Applied bottle range | 50-2000ml |
Applied cap size | 12-70mm |
rejects of capping | ≤0.3% |
Power Supply | 3800V 50HZ |
Power Consumption | <=2KW |
Pressure | 0.4-0.6Mpa |
Speed Control | Frequency Convertion |
Single machine noise | <=70Db |
Weight | About 950kg |
Dimension(LxWxH) | 1200x1000x1800(mm) |
Production Capacity | 5000-7200 bottles/h |
Competitive Advantage:
Carbon steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column
Manual and independent speed variation ,
Caps in chute photocell, machine will not work if there are no caps present on chute
Magnetic clutch capping head for screw caps
Stainless steel electrical control panel with 24 volt auxiliary commands
Equipped with Omron material on control panel
Automatic cap feeder, chute and applicating head
Safety guarding with interlock devices,Overload protection system
plastic or aluminium screw cap
With screw bottle feeding system
Alarm warning light and acoustics
the capping machine with Photoelectricity sensor system .
the machine with automatic cap unscrambler system
