Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE ISO SGS |
Model Number: | XF |
Minimum Order Quantity: | 1 Set |
Price: | By order |
Packaging Details: | Wooden box |
Delivery Time: | 1 month |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5 Sets per month |
Voltage: | 220V/380V Can Be Designed | Application: | Beverage, Food |
---|---|---|---|
Material: | Stainless Steel 304 / 316 | Automatic Grade: | Automatic |
Type: | Capping Machine | Product Name: | Automatic ROPP Cap Capping Machine |
Capping Speed: | 2000-20000 Bottles/hour | Condition: | New |
Packaging Type: | PET Or Glass Bottles | Driven Type: | Electric |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support | Packaging Material: | Wooden Box |
Weight: | 3000kg | Dimension(l*w*h): | 1060*750*1700mm |
Power: | 3kw | Warranty: | One Year |
High Light: | 12mm Automatic ROPP Capping Machine,12mm high speed capping machine,high speed ROPP Capping Machine |

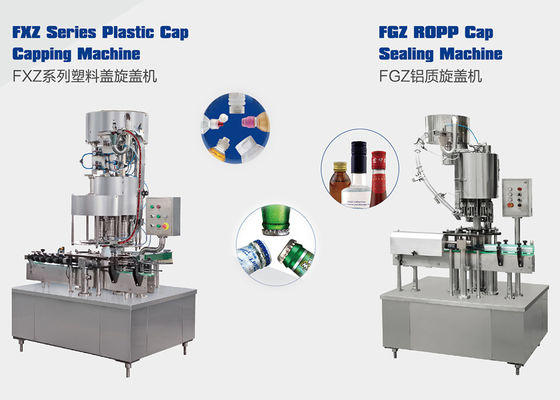

The automatic aluminium ROPP cap capping machine is suitable for sealing cylindrical (square) bottles of various specifications with plastic and aluminum anti-theft caps. It has the advantages of perfect performance, reliable operation, convenient operation, reasonable design, beautiful appearance and convenient debugging. It is widely used for the anti-theft cover of all kinds of liquid bottles such as steamy drinks, fruit juice, wine, mineral water, space water, etc.
Main technical parameters of aluminum capping machine:
1. Production capacity: 1500-2400 bottles / hour;
2. Applicable bottle type: metal cap, plastic cap;
3. Bottle mouth diameter: 25-40mm;
4. Number of cover heads: single head, six working positions;
5. Bottle height: 100-350 mm;
6. Bottle diameter: 40-100 mm;
7. Motor power: 0.75KW;
8. Overall dimension: 930 × 700 × 2100mm;
9. Machine weight: 600 kg.
10. Special specifications can be customized.
Main structure and performance:
1. Transmission system: motor, spindle, worm gear, limit cam.
2. Cover system: metal cover and plastic cover. (1) The metal cover is composed of thread cutter pressure spring, gland head, etc. (2) The plastic cover is composed of gland die, cover head, etc.
3. Automatic down cover system: micro motor, agitator, down cover track.
Aluminum Ropp cap
The bottle cap made of aluminum material can not be recovered after being sealed and opened for use.
Cap without vertical score
The aluminum anti-counterfeiting bottle cap needs to be grooved on the circumference of a certain height and connected with a point to break when opening.
Cap verticalscore
The aluminum anti-counterfeiting bottle cap should not only be grooved on the circumference of a certain height, but also be added with vertical cutting mark on the pre burst ring, and the breaking point and vertical cutting mark should be connected when opening.
Insert liner
A pad made separately and mechanically or manually embedded in the cover.
Injection liner
The liner material is injected into the bottle cap in a flow state, and evenly distributed in the circumference by a certain process method. The liner is formed after curing.
Molded liner
The cushion material is put into the cover in a certain way and pressed by a mold to form a cushion with the required shape.
Removal torque
Torque required to open the sealed cap.
Grooving, connecting point groove. bridge
The part cut on the circumference of a certain height of the bottle cap is the groove; the part not cut is the connecting point.
Knurling
In order to facilitate opening or decoration, a tooth shape is processed on the bottle cap.
Vertical score
A vertical notch cut on the ring to facilitate the breaking of the pre burst ring.
Product classification
According to the form after opening, it can be divided into: connected point cap and burst cap.
According to the structure of bottle cap liner, it can be divided into embedded liner bottle cap, drop plastic liner bottle cap and molded liner bottle cap.
According to the pressure state is divided into: atmospheric cap, pressure cap.
Quick Detail:
automatic capping machine with cap soting system
1. Full Automatic screw capping machine
2. easy change over for different bottle size
3. pick and place technology
4. over-load protection system
Description:
This automatic high speed bottle capping machine is developed on the basis of advinced technology. The structure is compact and the production is stable. The machine has the function of overload-protection and the bottle and machine will not be broken even if the wrong operation. The capping speed can be adjusted to control the production capacity.
The cap unscrambling system adopts crawler-type elevating method, it arrange caps according to the cap center of gravity, no fault cap output and no cap damage,A slideway connect the cap unscrambler and the capping machine, and it equipped with 1 sensors on the slideway, if there is no caps feed to capping machine, the sensor will send information to PLC, the machine will stop and alarming.
Applications:
This automatic bottle capping machine bottle tightener is used for plastic cap screw capping process.
it Suitable for PET bottles and glass bottles.
Specifications:
Model | ZGF-6 |
Applied bottle range | 50-2000ml |
Applied cap size | 12-70mm |
rejects of capping | ≤0.3% |
Power Supply | 3800V 50HZ |
Power Consumption | <=2KW |
Pressure | 0.4-0.6Mpa |
Speed Control | Frequency Convertion |
Single machine noise | <=70Db |
Weight | About 950kg |
Dimension(LxWxH) | 1200x1000x1800(mm) |
Production Capacity | 5000-7200 bottles/h |
Competitive Advantage:
Carbon steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column
Manual and independent speed variation ,
Caps in chute photocell, machine will not work if there are no caps present on chute
Magnetic clutch capping head for screw caps
Stainless steel electrical control panel with 24 volt auxiliary commands
Equipped with Omron material on control panel
Automatic cap feeder, chute and applicating head
Safety guarding with interlock devices,Overload protection system
plastic or aluminium screw cap
With screw bottle feeding system
Alarm warning light and acoustics
the capping machine with Photoelectricity sensor system .
the machine with automatic cap unscrambler system
