Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE ISO SGS |
Model Number: | XF |
Minimum Order Quantity: | 1 Set |
Price: | By order |
Packaging Details: | Wooden box |
Delivery Time: | 1 month |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5 Sets per month |
Voltage: | 220V/380V Can Be Designed | Application: | Beverage, Food, Chemical, Commodity |
---|---|---|---|
Material: | Stainless Steel 304 / 316 | Automatic Grade: | Automatic |
Type: | Capping Machine | Product Name: | Automatic Capping Machine |
Capping Speed: | By Order | Condition: | New |
Packaging Type: | PET Or Glass Bottles, Jar, Barrel | Driven Type: | Electric |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support | Packaging Material: | Wooden Box |
Weight: | 400kg | Dimension(l*w*h): | 1060*750*1700mm |
Power: | 300W | Warranty: | One Year |
Function: | Bottle Capping Machine | Bottle Type: | All Kinds Of Bottles |
Production Capacity: | 2000-20000bph 500ml | ||
High Light: | 2000ml Automatic Capping Machine,2000ml automatic bottle capper,2000ml high speed capping machine |
Quick Detail:
automatic capping machine with cap soting system
1. Full Automatic screw capping machine
2. easy change over for different bottle size
3. pick and place technology
4. over-load protection system
Description:

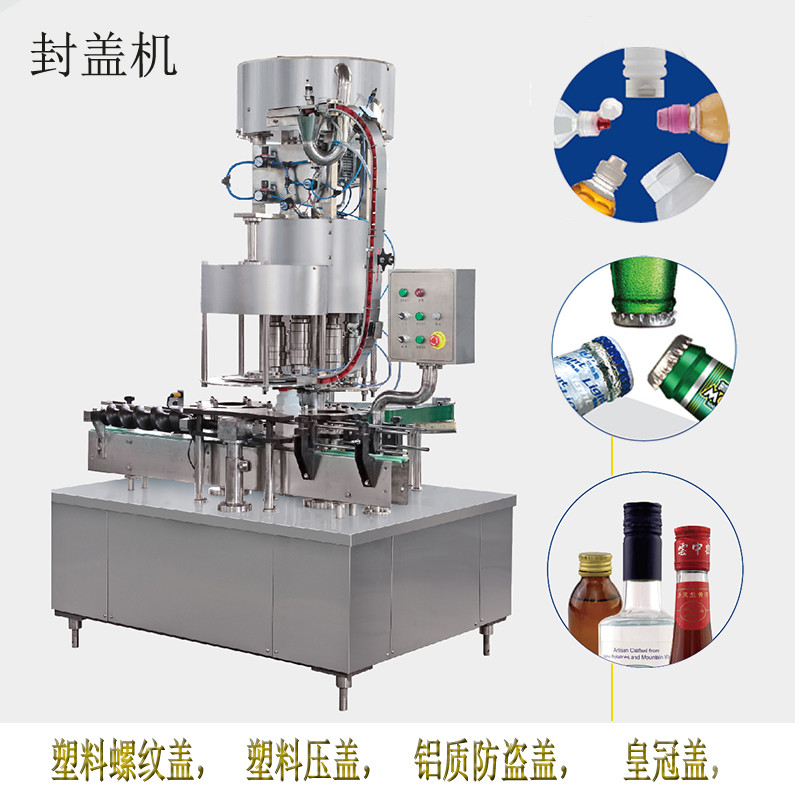

This automatic high speed bottle capping machine is developed on the basis of advinced technology. The structure is compact and the production is stable. The machine has the function of overload-protection and the bottle and machine will not be broken even if the wrong operation. The capping speed can be adjusted to control the production capacity.
The cap unscrambling system adopts crawler-type elevating method, it arrange caps according to the cap center of gravity, no fault cap output and no cap damage,A slideway connect the cap unscrambler and the capping machine, and it equipped with 1 sensors on the slideway, if there is no caps feed to capping machine, the sensor will send information to PLC, the machine will stop and alarming.
Applications:
This automatic bottle capping machine bottle tightener is used for plastic cap screw capping process.
it Suitable for PET bottles and glass bottles.
Specifications:
Model | ZGF-6 |
Applied bottle range | 50-2000ml |
Applied cap size | 12-70mm |
rejects of capping | ≤0.3% |
Power Supply | 3800V 50HZ |
Power Consumption | <=2KW |
Pressure | 0.4-0.6Mpa |
Speed Control | Frequency Convertion |
Single machine noise | <=70Db |
Weight | About 950kg |
Dimension(LxWxH) | 1200x1000x1800(mm) |
Production Capacity | 5000-7200 bottles/h |
Competitive Advantage:
Carbon steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column
Manual and independent speed variation ,
Caps in chute photocell, machine will not work if there are no caps present on chute
Magnetic clutch capping head for screw caps
Stainless steel electrical control panel with 24 volt auxiliary commands
Equipped with Omron material on control panel
Automatic cap feeder, chute and applicating head
Safety guarding with interlock devices,Overload protection system
plastic or aluminium screw cap
With screw bottle feeding system
Alarm warning light and acoustics
the capping machine with Photoelectricity sensor system .
the machine with automatic cap unscrambler system
Equipment features:
*High efficiency, energy saving and reliability
*Automatic cover supply and management
*The qualified rate of sealing is high and the rate of damaged bottle and cap is low
*It can be customized according to different bottle type and cap type
Applicable to any of the following products: plastic screw cap, butterfly cap, crown cap, aluminum anti-theft cap, three screw cap, sports cap, butterfly cap, etc
