Place of Origin: | China |
---|---|
Brand Name: | Worldsun |
Certification: | CE ISO |
Model Number: | DCGF |
Minimum Order Quantity: | 1 set |
Price: | USD5000/set |
Packaging Details: | Wooden box |
Delivery Time: | 50 days |
Payment Terms: | L/C, T/T, D/P |
Supply Ability: | 50 sets/year |
Production Capacity: | 15000 Bottles/hour 500ml | Material: | Stainless Steel 304/316 |
---|---|---|---|
Power: | 5kw | Operation: | PLC Controled Automatic System |
Application: | Carbonated Beverage PET Bottle | Dimension: | 2300x1900x2200mm |
Filling Liquid: | Cola, Carbonated Drink | Condition: | New |
Bottle: | 150-2500ml | Warranty: | 2 Years |
High Light: | 15000BPH carbonated drink filling machine,SS316 carbonated drink filling machine,15000BPH carbonated soda filling machine |

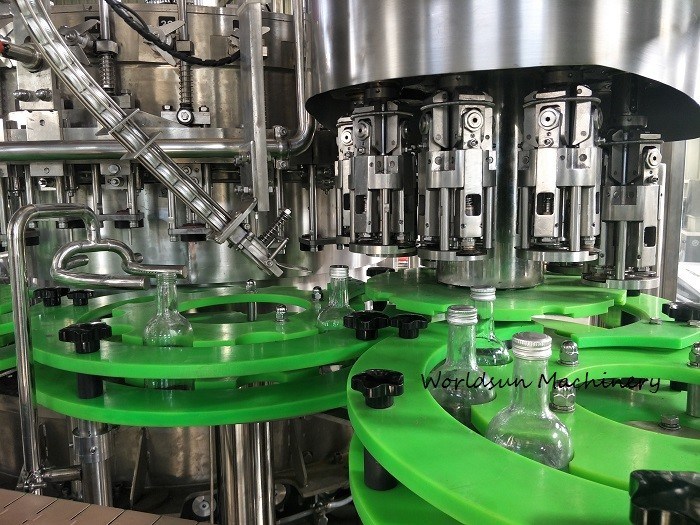

15000BPH Automatic Bottle Carbonated Beverage Carbonated Drink Filling Machine Stainless Steel 304 316
It mainly used for producing Carbonated beverage; since carbon dioxide gases(CO2) are pressurized to mix with liquids , the pressure throughout the filling system is typically 0.3 Mpa-0.6Mpa. and because CO2 is more stable at low temperatures, low temperatures increase the solubility of CO2 in water. To increase the amount of carbon dioxide dissolved in water, the beverage is usually mixed and filled at 0-5℃;and there are many other factors affecting CO2 content in carbonated beverages.
Main Parameters:
Model | DCGF32/32/10 |
Production capacity | 15000 bottles/hour 500ml |
Bottle | Round PET bottle |
Bottle diameter | 30-90mm |
Bottle height | 150-320mm |
Compressed air | 0.3-0.7Mpa |
Rinsing pressure | 0.25Mpa |
Total power | 6.2KW |
(1).To use the clamp to hang the bottle neck; to maintain the bottle shape and speed.
(2) .The parts in contact with the material are made of high quality stainless steel, no dead angles, easy to clean;
(3) .Using high-speed filling valve, the liquid level is accurating and there is no liquid leaking, to ensure correct filling;
(4) .The capping adopts advanced technology, the capping and sorting machine is installed at a lower position, and the cap is in a horizontal position to ensure the quality of the cap without damaging the caps;
(5 ).Equipped with a complete protection device to effectively protect the safety of equipment and operators;
(6) .The control system has the functions of production speed control, insufficient cover detection, self-stop of card bottle and production count;
The bottle rinsing is an alternative to the traditional cast iron material sprocket washer. It not only has a long flushing time,
but also greatly increases the production capacity.
The filling part adopts advanced micro-negative pressure gravity filling principle, which is fast, stable and accurate. Make sure the liquid level is accurate and free of liquid damage.
The capping part adopts the magnetic torque type capping head, and the capping head made of copper material can realize the function of grasping and screwing the cap quickly and accurately.
The host adopts advanced PLC automatic control technology, and the main electrical components and pneumatic components are world famous brand products.
More than 90% parts of the whole machine are made of high-quality stainless steel, and the contact parts are 304 or 316L, which meet the health standards. The shape is beautiful and generous; The control system adopts imported electrical components, the working procedure adopts switch control, and the operation method is simple and convenient; Most of the transmission parts are controlled by high-quality and precise pneumatic components, with the characteristics of stable performance, safe and reliable operation, accurate measurement and so on. The machine is suitable for filling various carbonated drinks such as Coca Cola, Sprite, Fanta, premix, cocktail, etc. according to the different materials of the bottles, different types of equipment are provided. In recent years, we have jointly introduced the advanced beverage mixing technology of West Germany with Shanghai and other colleges and universities, and have professional talents in research, design, development and manufacturing, and carried out scientific management. Technology, product quality, fast and thoughtful after-sales service, to provide overseas users with plant construction scheme consultation, installation and debugging, technical training, equipment technical transformation, and perennial supply of beverage machine accessories, deeply trusted by users.
The factory regards the product quality as the life of enterprise development, and establishes a strict quality assurance system. The quality policy of the factory is "quality *, customer first".
We are specialized in producing: washing, filling, capping three in one unit, barrel line, water treatment system, vial filling production line, mixing unit, sugar treatment system, refrigeration unit, cleaning system, capping unit and other packaging machinery.
